aluminum doors shall be nominal 1-3/4" thick flush design, as
manufactured by ALUTECHDOORS., Miami, Florida. Door stiles
and rails shall have a strong, rigid aluminum sub-frame with integral
edge caps. The sub-frame shall be connected by a 3/8" steel tie
rod top and bottom. No snap-on or applied door edge will be accepted
at hinge or lock stiles.
Face sheet shall be one piece 0.090" smooth aluminum (vertical
ribbed not available) of anodizing quality, with a minimum tensile
strength of 22,000 psi. Face sheets shall be concealed under a
1/2" edge cap full perimeter.
CORE: All voids between sub-frames shall be filled with a isocyanurate
rigid foam board that is fire retardant and a R-value of 9. Core
shall be laminated between two sheets of 1/8" tempered hardboard
for impact reinforcing. Tempered hardboard shall be the same size
as face sheets. Lamination: Sub-frame, face sheets and insulated
core shall be bonded together with a thermosetting adhesive under
pressure to form a water, heat, and chemical resistant bond.

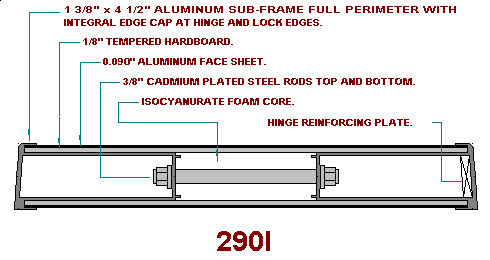

FULL PERIMETER: 1-3/8" x 4-1/2" 6063-T5 tubular aluminum sub-frame
with a 1-3/4" integral edge cap at hinge and lock side with an
applied edge cap top and bottom to insured proper protection from
the weather. Sub-frame shall be connected by a 3/8" plated steel
tie rod top and bottom. Overall door tolerance shall be plus or
minus 1/16". Extrusion tolerances shall be as set by the American
Aluminum Manufacturers' Association.
finish is 204R1 clear anodized with a minimum coating of 0.4 mils
thick and 313 dark bronze anodized with a minimum coating of 0.7
mils thick. Other finishes available on request.
be prepared for 1-1/2 pair of template type hinges 4-1/2" x 4-1/2"
x .134, one cylindrical lockset 2-3/4" backset 2-1/8" bore, one
deadbolt 2-3/4" backset 2-1/8" bore (only if required), undercut
for 1/2" threshold and reinforced for closer and door stop. Hinges
and strike mounting plates will be of 7 gauge steel (standard)
or 1/4" aluminum plate.
x 4-1/2" template type hinges.
BORED LOCKS: Series 4000, Grade
1 (2-3/4" backset 2-1/8" bore).
MORTISE LOCKS: Series 1000, Grades
1 & 2. DEAD BOLTS: 2-3/4" Backset 2-1/8" bore.
FLUSH BOLTS: ANSI
A156.16 - ANSI A115.4
EXIT DEVICES: Type 1 & 3 Grades 1 & 2 and
Surface Vertical rod device.
CLOSER: Surface mounted only. All
drilling and tapping shall be done in the field.
undercut 5/8" others upon request.
DOOR HOLDERS: Surface mounted
only. All drilling and tapping shall be done in the field.
Reinforce only. Drilling and tapping shall be done in the field.
For hardware other than what is listed above please check with
us for compatibility.
FLUSH ALUMINUM DOOR ELEVATIONS
